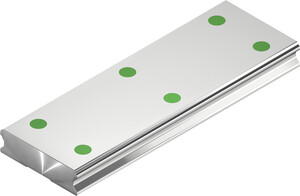

Type:
WER17R4000H
Article number:
5-000851
Hint
Rail in manufacturing length, please note the deviating tolerance specifications in the table.
Dimensions
| Dimensions | |||
|---|---|---|---|
| WR | Rail width | 33 | mm |
| WB | 18 | mm | |
| HR | Rail height | 9,3 | mm |
| D | 7,5 | mm | |
| h | 5,3 | mm | |
| d | 4,5 | mm | |
| P | Hole pitch | 40 | mm |
| Lmax | Max. length (E1 = E2 = P/2) | 3960 | mm |
| Lmin | Min. length | 52 | mm |
| E1/2 min | 6 | mm | |
| E1/2 max | 34 | mm | |
| Weight | 2,2 | kg/m | |
| Dimensions (rail in production length) | |||
|---|---|---|---|
| L | Total length | 4.000 +20 | mm |
| E1 | 15 ±0,5 | mm | |
| E2 | 25 +20 | mm | |
HIWIN coating HICOAT CTS
HICOAT CTS is a thin layer chrome coating that offers good corrosion protection and a very high wear protection. The high wear protection results from the extraordinary hardness of the coating. The CTS coating is free of Cr(VI) and suitable for use in food stuffs. It is available for the HG, EG, CG and WE series. Further information can be found in the catalogue "Linear Guideways" under chapter "HIWIN coatings for linear guideways".
| Description | Category | Product | Size | Language |
|---|---|---|---|---|
| Profilsínvezetések | Katalógus | Profilsínvezetések | 7 MB | |
| Profilsínvezetések | Konfigurációs lap | Profilsínvezetések | 2 MB | |
| Profilsínvezetések | Szerelési útmutató | Profilsínvezetések | 4 MB | |
| CG lineáris vezetők | Szórólap | Profilsínvezetések | 301 KB |
Principle of operation of a linear guideway
A linear guideway makes it possible to move in a linear motion with rolling elements. The use of balls and rolls between the rail and block in a linear guideway makes precise linear movements possible.
Displacement resistance depending on lubrication condition
The displacement resistance of a carriage depends on many factors, e.g. load, temperature, lubricant (grease, fluid grease, oil), lubricant quantity, travel speed, series, size or the sealing system. A concrete specification of the displacement resistance is therefore only possible with defined general conditions. An essential factor here is the lubricant and the lubrication condition. Especially in freshly lubricated condition, the displacement resistance is clearly increased. However, after a running-in period of 15 metres, the displacement resistance is reduced again by approx. 50%.
Mechanical or manual chamfering
In the following video, you can see how chamfering edges on linear guideways works both mechanically and manually.
Long-term lubrication unit of a linear guideway
The long-term lubrication unit for linear guideways ensures that lubrication intervals can be increased many times over, thus reducing the number of maintenance intervals significantly. Depending on requirements, up to two long-term lubrication units can be mounted on each block.
Assembly and disassembly of cover caps
The cover caps are used to keep the mounting holes of the profile rails free of chips and dirt. In this video, we show you how to easily assemble and disassemble steel, brass or plastic cover caps.
