Type:

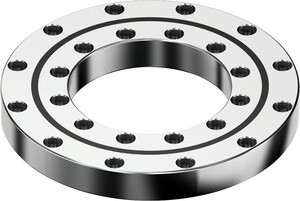

CRBE11528CWWC8P2
Artikelnummer:
18-000479
| Dimensions | |||
|---|---|---|---|
| d | Inner diameter | 115 | mm |
| D | Outer diameter | 240 | mm |
| B,T | Width | 28 | mm |
| 1,5 | mm | ||
| rmin | 1,5 | mm | |
| dOH | Diameter of lubrication hole | Ø 3 | mm |
| da | 168 | mm | |
| Da | 188 | mm | |
| Cdyn_radial | Radial dynamic load rating | 73,1 | kN |
| Cdyn_axial | Axial dynamic load rating | 162 | kN |
| C0_radial | Radial static load rating | 131,9 | kN |
| C0_axial | Axial static load rating | 300 | kN |
| PCD1 | 139 | mm | |
| Inner ring mounting holes | 12×Ø14×8,6U Ø9 | mm | |
| PCD2 | 217 | mm | |
| Outer ring mounting holes | 12×Ø14×8,6U Ø9 | ||
| Td | Max. idling torque | 2,7 | Nm |
| Max. speed (grease) | 330 | 1/min | |
| Max. speed (oil) | 440 | 1/min | |
| Mass | 6,76 | kg | |
